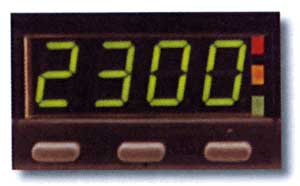

The
FuzyPro 2300 Indicator Controller is available as either
an indicator or controller. Small size does not come at
the expense of features, they have large 10mm high displays,
2 amp relays and full 3-wire PT100 inputs. The controller
features our hand-free Easy Tune PID algorithm.
•
Red or Green Display
• 3-Wire PT100 or T/C
• Two process alarms
• Manual or Easy Tune
• Setpoint Lock
• On Control Indicator
• RS485 communications
• 0.1% Accuracy
FuzyPro
2300 1/32 DIN Indicator & Controller Technical
Data
Features
Functions
Three term PID
controller, indicator with alarms or indicator only versions
available.
Control Types
Controller versions
have PID with Easy-tune, manual tuning plus pre-tune or
On/Off control.
Setpoint Lock
Limits operator
access to the controller setpoint value.
Output Configuration
Up to 3 Total.
Max 1 for control, Max 2 for Alarms.
Alarm 1 & 2 Types
Process high, process
low, setpoint deviation and band.
Human Interface
3 button operation,
4 digit 10mm high LED display (available in either red or
green), plus on-control, setup, alarm and setpoint indicators.
Dual Setpoint Selection
Front panel selection
of SP1 and SP2 on controller versions.
FuzyPro
2300 1/32 DIN Indicator & Controller Input
Thermocouple
J, K, R, S, T,
B, & N
RTD
3 Wire PT100, 50W
per lead maximum (balanced).
DC Linear
0-20mA, 4-20mA,
0-50mV, 10-50mV. Scalable -1999 to 9999, decimal point as
required.
Impedance
>10MW for Thermocouple
and mV ranges, 4.7W for mA ranges.
Accuracy
+/- 0.1% of input
span (0.25% for J & T T/C) +/- 1 LSD (T/C CJC better than
0.7°C).
Sampling
4 per second, 14
bit resolution approximately.
Sensor Break Detection
<2 seconds (except
on 0-20mA range), control O/P's turn off, high alarms activate
for T/C and mV ranges, low alarms activate for RTD, mA ranges.
FuzyPro
2300 1/32 DIN Indicator & Controller Outputs
& Options
Control & Alarm Relays
Contacts SPDT 2
Amp resistive at 240V AC, >500,000 operations.
(if communications or 2nd relay is fitted, all relay contacts
become SPST)
Control SSR Outputs
Drive capability
>10V DC into 500W minimum.
Communications
2 Wire RS485, 1200
to 9600 Baud, MODBUS.
FuzyPro
2300 1/32 DIN Indicator & Controller Operating
& Environmental
Temperature & RH
0 to 55°C (-20
to 80°C storage), 20% to 95%RH non-condensing.
Power Supply
90 to 264V 50/60Hz
(optional 12 to 24V AC/12 to 30V DC), approx. 4 Watts.
Front Panel Protection
IEC IP66 (Behind
panel protection is IP20).
Approvals and Certification
CE, UL & ULc.
